For the repair of women's shoes or boots with classic-sized elastic-core heels. Used by most shoe factories, allows easy replacement of the dowel lifts.
BLU FOX®
DOUBLE LAYER
DOWEL LIFTS
DOUBLE LAYER
DOWEL LIFTS

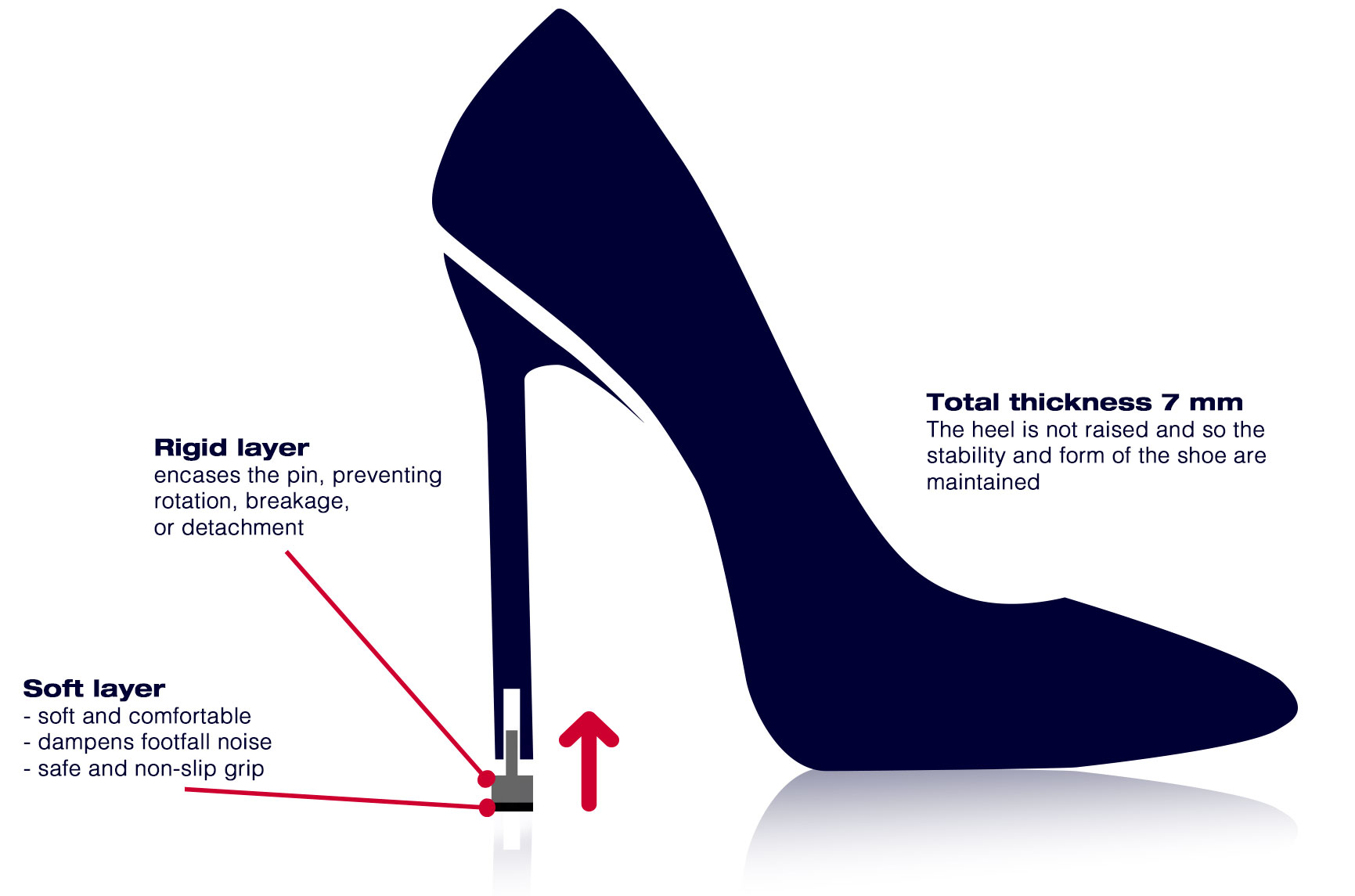

Blu Fox® dowel lifts, in double-layered TPU with a steel pin, facilitate repairs of women's high heels or boots with stiletto heels. Easy to mill, they ensure excellent aesthetics, a comfortable, noiseless walk, and excellent grip.
MATERIALS
TECHNICAL CHARACTERISTICS OF THE THERMOPLASTIC POLYURETHANE (TPU) DOWEL LIFT
• Total thickness = 7 mm
TPU S1
• Hardness (DIN 53505) 60 shore D
• Abrasion resistance (DIN 53516) 40 ±5 mm³
TPU S2
• Hardness (DIN 53505) 90 shoreA
• Abrasion resistance (DIN 53516) 20 ±5 mm³
The most common hardness values of half soles, heels, and dowel lifts are in the range of Shore 60A (soft) to Shore 90A (hard), depending on specific footwear needs.
TECHNICAL FEATURES
OF THE PINS
• Harpooned head (flower/hedgehog shaped) to ensure optimal grip on the surrounding material, avoiding accidental detachments.
• Head diameter varies with shoe size to facilitate finishing work.
• Torsion tested to ensure optimal balance between twist and breaking point.
• Homogeneous glossy zinc plating.
• All components are produced in Italy and are the same as those used by the major footwear brands.
QUALITY
UNI EN ISO 9001
Input control of thermoplastic materials used in injection molding process.
Control and certification of every step in molding process.
X-ray inspection of the final product to verify the absence of air bubbles.
Attention and continuous research in the selection of inserts and materials used.
Input control of thermoplastic materials used in injection molding process.
Control and certification of every step in molding process.
X-ray inspection of the final product to verify the absence of air bubbles.
Attention and continuous research in the selection of inserts and materials used.
FEATURES
COLORS
Custom colors on request
BLACK
beige

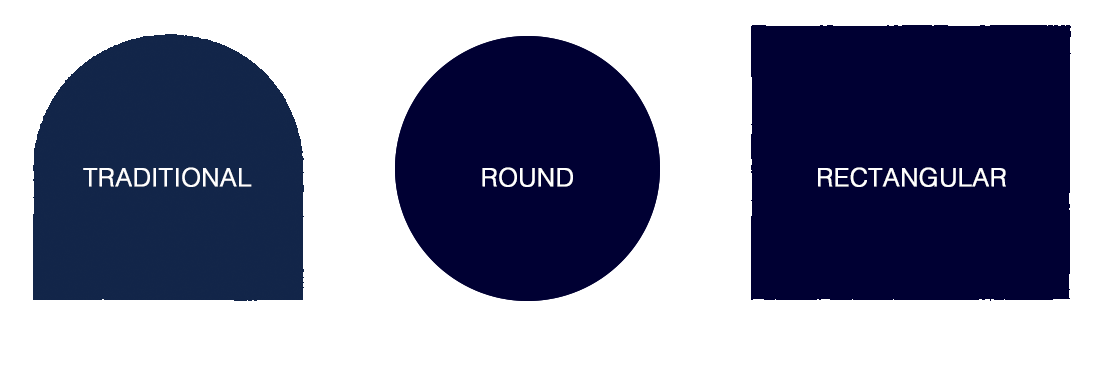

SHAPES
PINS
For the repair of women's shoes or boots with elastic-core heels for footwear models in non-EU countries. Saves time in replacing dowel lifts.
For the repair of women's shoes or boots with non-elastic closed-core heels. The hollow, side-split pin design allows for diameter reduction and easy insertion into the core without forcing or risk of breakage. The pin holds perfectly without need for glue. Conforms to all types of heel cores, both elastic and non-elastic.
APPLICATION PROCEDURE
Remove the dowel lifts to be replaced with the help of snippers, making sure to pull the old pin straight out in line with the heel to prevent damage to the heel core. Insert the new dowel lift and seat with two or three hammer blows.
AVAILABLE SIZES
STANDARD PIN
black or brown
| Traditional shape | 7, 8, 9, 10, 11, 12, 12L, 12SL, 13, 14, 15, 16, 17, 18, 18L, 18SL, 20 (mm) |
| Rectangular shape | 27x24, 34x19 (mm) |
| Round shape | 8R, 9R, 11R, 12R, 13R, 15R (mm) |
THIN PIN
black or brown
| Traditional shape | 7, 8, 9, 10, 11, 12, 13, 14, 15, 16 (mm) |
| Round shape | 8R, 9R, 11R (mm) |
FLEXI PIN
black or brown
| Traditional shape | 7, 8, 9, 10, 11, 12, 13 (mm) |
DOWNLOAD OUR BROCHURE
For the real measures of Blu Fox® dowel lifts
Package
The box contains 20 pairs of Blu Fox® double-layer dowel lifts.
